Startseite /Produkte/Vmc Mitte der Vertikalen-maschinellen Bearbeitung/VERTICAL 85ton YR-850A-2S VERTICAL rotary table plastic injection molding molding machine

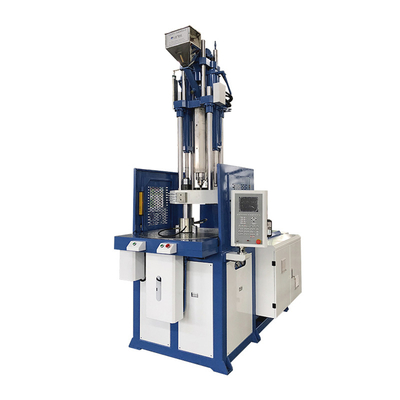

VERTICAL 85ton YR-850A-2S VERTICAL rotary table plastic injection molding molding machine

1 set
MOQ
$30,516.00(>=1 sets)
Preis
VERTICAL 85ton YR-850A-2S VERTICAL rotary table plastic injection molding molding machine
Eigenschaften Galerie Produkt-Beschreibung Fordern Sie ein Zitat
Eigenschaften
Technische Daten
Plastic Processed: PP, PC, ABS, PET, PVC, PPR, EVA, PA, PE, ABS/PP, PE/PP
Condition: New
Style: VERTICAL
Ejector Stroke(mm): 115 mm
Ejector Force(kN): 22 kN
Theoretical Shot Volume(cm³): 163 cm³
Injection Rate (g/s): 77 g/s
Machine Type: Hydraulic
Injection Weight (g): 147 g
Screw diameter (mm): 36 mm
Weight (KG): 4200 kg
Type: Preform Injection
Open Stroke(mm): 250 mm
Model Number: YR-850A-2S
Power (kW): 18.5 kW
Warranty: 1 Year
Key Selling Points: Easy to Operate
Applicable Industries: Manufacturing Plant
Showroom Location: None
Marketing Type: Ordinary Product
Machinery Test Report: Provided
Video outgoing-inspection: Provided
Warranty of core components: 1 Year
Core Components: Bearing, Motor, Pump, Gear, PLC, Pressure vessel
Grundinformation
Model Number: YR-850A-2S
Zahlung und Versand AGB
Produkt-Beschreibung
Product Description
Features
Specification & Paramenters
Specification
 Unit
Model：YR-850A-2S





Injection Unit
Screw Diameter
mm
36
40
45
Injection Pressure
kgf/cm²
2176
1763
1393
Shot Volume(Theoratical)
cm³
163
201
254
Shot Weight
g/oz
147/5.2
181/6.4
229/8.1
Injection Rate
cm³/sec
86
106
134
Screw Stroke
mm
160
Temperature Section
-
3+1

Hopper Capacity
Liter
30






Clamping Unit
Clamping Force
ton
85


Rotary Table Size
mm
D1000

Station Clearance
mm
±0.02

Min. Mould Height
mm
200/240/260/300

Opening Stroke
mm
250

Max. Open Daylight
mm
450/490/510/550

Ejector Force
ton
2.2

Ejector Stroke
mm
115






General
Max.hydraulic pressure
kgf/cm²
140





Tank Volume
Liter
470
Pump Motor Power
kw
18.5
Heater Power
kw
5.95
Total Power
kw
20.95
Machine Weight
ton
4.2
Machine Dimensions
m
1.95*1.4*3.2
Our Advantages


Processing team.


We have VMC,CNC,Gantry machining center that ensures the partsprrecision of parts production.


High configuration.

PRODUCT
BAND
Controller
Techmation
Valve
Yuken
Contractor
Schneider
Electromagnetic relay
Schneider
Electronic ruler
GEFRAN
SSR
FORTEC
Packing & Delivery
Certifications
Customer Photos
Company Profile
TSPLAS machinery is located in east harbor city Ningbo of China.It was founded in 2004,our main bussiness is to R&D,manufacture and sales vertical injection molding machines .Our machines clamping force ranges from 15ton to 250ton,injection weight ranges from 34g to 900g,applied in automotive industry,tooling industry,harness industry,proxy switch and medical industry.Depend on the contemporary style and stable performance,our machines have been exported to India, Turkey,Russia, Brazil ,ect .for more than 10 years.
FAQ
Q1: How to select a proper machine?
A1: Please provide the fllowing information ,then we will suggest your best Model choice
-Dimension and cavities of mould
-Features of plastic materail
-Dimension and weight of products
-prodution requirment:production efficiency，products quality etc.

Q2: Are you a trading company or a manufacturer?
A1: We are a manufacturer, we supply the factory price with good quality, welcome to visit !

Q3: Is there complete machine include mould and other auxiliary equipment ?
A3: Yes ,what we are provide is the complete A-Z solution line.
.Q4: Can you help us with the shipment of this machine ?
A4: We have our special shipment company which already cooperate for long time, we will give you the best price, fast delivery.
