Startseite /Produkte/CNC-Plattensäge/SAMACH China CNC Horizontal Beam Saw Machine Heavy Duty Automatic CNC Beam Saw Machine

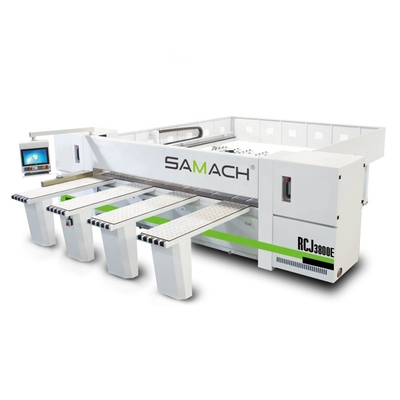

SAMACH China CNC Horizontal Beam Saw Machine Heavy Duty Automatic CNC Beam Saw Machine

1 Set
MOQ
$27,000.00(1 - 3 Sets) $25,500.00(>=4 Sets)
Preis
SAMACH China CNC Horizontal Beam Saw Machine Heavy Duty Automatic CNC Beam Saw Machine
Eigenschaften Galerie Produkt-Beschreibung Fordern Sie ein Zitat
Eigenschaften
Technische Daten
Condition: New
Type: Panel Saw
Use: Woodworking
Style: Horizontal
Usage: cutting
Voltage: OEM
Dimension(L*W*H): 6400*6300*1800mm
Warranty: 1 Year
Application: industry
Weight (KG): 3000 KG
Power (kW): 25.2
Key Selling Points: Competitive Price
Max.Cutting Height at 90°(mm): 100mm
Max.Cutting Height at 45°(mm): 100mm
Max. Length of Workpiece (mm): 3800mm
Applicable Industries: Hotels, Machinery Repair Shops, Advertising Company, Woodworking
Marketing Type: 1 Year
Machinery Test Report: Provided
Video outgoing-inspection: Provided
Warranty of core components: 1 Year
Core Components: Motor
Groove saw blade diameter: 180mm
Groove saw shaft diameter: 45mm
Groove saw shaft speed: 6900rpm
Main saw blade diameter: 350mm
Main saw shaft diameter: 80mm
Main saw shaft speed: 4800rpm
Saw base forward speed: 100m/min
Saw base retreat speed: 150m/min
Automatic feeding speed: 100m/min
Gripper quantity: 15
Grundinformation
Zahlung und Versand AGB
Packaging Details: soft packing & plywood packing
Supply Ability: 80 Set/Sets per Month
Produkt-Beschreibung
Products Description
CNC Panel Saw Machine Heavy Duty China Automatic Cnc Beam Saw Machine
Parameter
Model
RCJ3800E
Work length
3800mm
Work thickness
100mm
Main saw blade diameter
350mm
Main saw shaft diameter
80mm
Main saw shaft speed
4800rpm
Groove saw blade diameter
180mm
Groove saw shaft diameter
45mm
Groove saw shaft speed
6900rpm
Saw base forward speed
100m/min
Saw base retreat speed
150m/min
Main saw motor
15kw
Groove saw motor
2.2kw
Saw base drive motor
1.5kw
Automatic feeding motor
2.0kw
High pressure blower motor
2.2kw * 2
Total power
25.2kw
Automatic feeding speed
100m/min
Gripper quantity
15
Air pressure
5-7kg/cm²
Height of worktable away ground
950mm
Machine size
6400*6300*1800mm
Optimization software
Optional
Printer
Optional
