Name: Garment Shops New Leapion Wood CNC Router Machine 1325 Engraver Milling 4 Axis CNC Router Machine
Brand: Garment Shops New Leapion Wood CNC Router Machine 1325 Engraver Milling 4 Axis CNC Router Machine
SKU: 1325 Router Machine
Price: 3 USD
Availability: InStock
Rating: 4.7 (125 reviews)

Eigenschaften Galerie Produkt-Beschreibung Fordern Sie ein Zitat

Eigenschaften

Technische Daten

Condition: New

Range of Spindle Speed(r.p.m): 1 - 24000 rpm

Positioning Accuracy (mm): 0.01 mm

Number of Axes: 4

No. of Spindles: Single

Working Table Size(mm): 1300Ã—2500

Machine Type: CNC Router

Travel (X Axis)(mm): 1300 mm

Travel (Y Axis)(mm): 2500 mm

Repeatability (X/Y/Z) (mm): 0.01 mm

CNC or Not: CNC

Voltage: 220v/380v

Dimension(L*W*H): 3200*2170*1900MM

Weight (KG): 1000

Control System Brand: NC Studio, Siemens, Syntec, Mach3, DSP, RichAuto

Warranty: 2 years

Key Selling Points: Competitive Price

Applicable Industries: Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Retail, Construction worksÂ , Energy & Mining, Other, Advertising Company, Woodworking

Machinery Test Report: Provided

Video outgoing-inspection: Provided

Warranty of core components: 2 years

Core Components: Bearing, Motor, Pump, Pressure vessel, Engine, Gearbox, Frequency converter, Control system, Spindle

Product name: 4 Axis Cnc Router

Keywords: 3d Wood Cutting Cnc Machine

Spindle: 3.5kw Air Cooling Spindle

Working area: 1300x2500mm

Motor: Stepper Motor

Inverter: Fuling Inverter

Table Surface: Vacuum Combined T-slot Table

Model: 1325 Router Machine

Function: Cutting Engraving Non-metal Materials

Guide rail: Taiwan Hiwin Square Guide Rail

Grundinformation

Model Number: 1325 Router Machine

Zahlung und Versand AGB

Packaging Details: 1. Outside package: Strong wooden case 2. Inner package: Water-proof plastic film package with foam protection in each corner Solid Seaworthy Wood Box Package

Supply Ability: 50 Set/Sets per Month

Produkt-Beschreibung

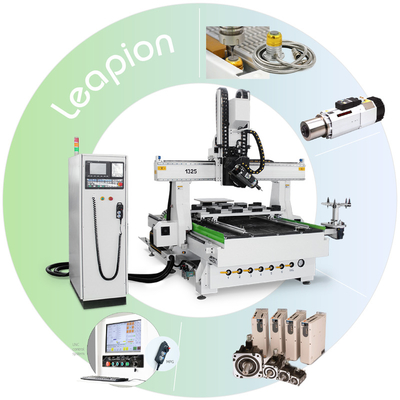

Leapion New CNC Wood Router Machine 1325 4 Axis CNC Router Engraver Milling Machine

1.Economic wood CNC router with small space occupied, and less power consumption.

2.Stable heavy duty structure, long lifetime using.

3.Vacuum & T-slot working table, fast and easy to fix materials on table.

4.DSP/NCSTUDIO controller, easy operation, professional for cutting and engraving.

5.Auto lubrication system for regular maintenance,convenient to use.

6.USB interface, easy to transfer G code.

Mode	LR-1325 4Ex	LR-1530 4Ex	LR-2040 4Ex
Travelling size	1300*2500mm	1500*3000mm	2000*4000mm
Travelling size		51*98inch	59*118inch	79*157inch
Z-axis clearance	200mm/7.9inch
Repeatability	±0.03mm/±0.001inch
X, Y Structure	HIWIN guide rail and helical gear rack transmission
Z Structure	Guide rail and ball screw
Guide rails	20/25mm linear ball-bearing profile rails（HIWIN/PMI/THK）
Table structure	T-slot vacuum table
Motor & drive	YASKAWA(DELTA/FUJI)servo motor
Spindle	7.5KW/9KW/12KW air cooling
Working voltage	380V/220V

✦We will give you 2 years warranty, so you don't have to worry about the after-sales.

✦We will also send you new parts if there's any parts broken by non-human issues.

✦Leapion Laser Company is becoming the Chinese TOP in the laser engraving, cutting and marking industry. We are innovators. We are problem solvers.

✦Leapion Laser Company is committed to designing and manufacturing the highest-quality laser cutting machines and cnc router machine.

✦Original concept of Leapion is to bring CO2 laser engraving systems to both commercial customers, small business owners and the home craftsman.

✦Over the years we developed larger, more powerful CO2 laser systems and fiber laser cutting and marking machine.

✦Leapion Laser Company is in laser machine business since 2007, which is a global manufacturing company producing laser engravers, laser markers, CNC router, UV inkjet printers for various applications, such as signage, advertising, woodworking furniture.

FAQ

✦How to operate the machine ?
We will deliver English manual and video with the machine to you. If you still need our help, please contact us.

✦How can I get the sample to check you quality ?
If you want to marking sample to check the quality, we can help you do this. first you need to provide the logo or design to us, free mark samples can be provided.

✦Does the machine can be customized according to my requirements ?
Sure, we have a strong technical team and have rich experience. Our goal is to make you satisfied.

✦Can you arrange the shipment for me ?
We can arrange the shipment for our clients by sea or by air. Trading terms FOB, CIF, EXW are available.
